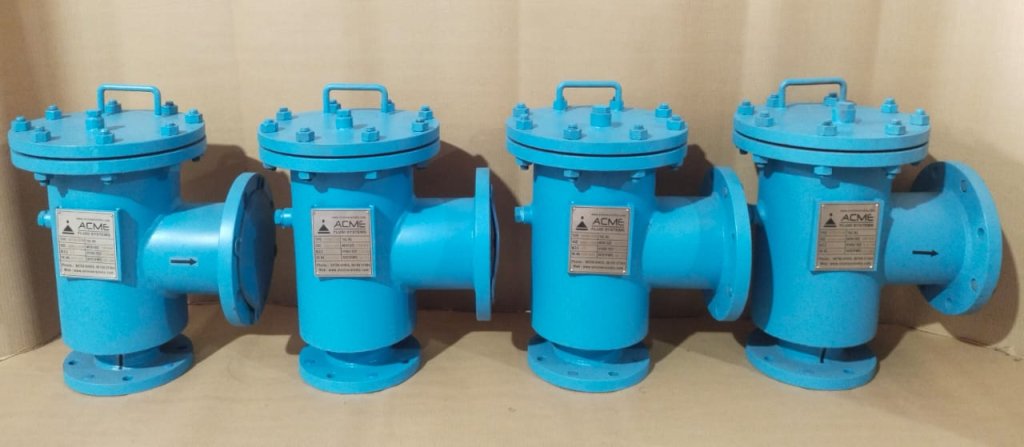

Suction Diffusers are compact pipeline devices designed to be installed at the suction side of centrifugal pumps. They combine the functions of a suction strainer, flow straightener, and elbow into a single unit, helping to improve pump performance and protect the pump from debris. The diffuser basket removes dirt, scale, welding slag, and other solid contaminants from the fluid before it enters the pump. At the same time, the internal vanes straighten turbulent flow and create a uniform velocity profile at the pump inlet. This reduces turbulence, minimizes cavitation, and ensures smoother pump operation with extended equipment life. Suction diffusers are widely used in HVAC systems, cooling water circuits, industrial process systems, power plants, and pumping stations where pump protection and efficient flow control are critical.
Design & Construction
A typical suction diffuser consists of:
Working Principle
As fluid enters the suction diffuser, it first passes through the perforated strainer basket, which captures debris and contaminants. The fluid then flows through internal straightening vanes, which eliminate turbulence and ensure a uniform velocity profile. This conditioned flow enters the pump suction, allowing the pump to operate efficiently and with reduced mechanical stress.
Advantages of Using Suction Diffusers
| Parameter | Specification |
| Size Range | 50 mm to 600 mm (2" to 24") |
| End Connections | Flanged / Grooved / Threaded |
| Pressure Rating | PN10 / PN16 / ANSI 150 |
| Body Material | Cast Iron / Carbon Steel / Stainless Steel |
| Strainer Basket | SS304 / SS316 Perforated |
| Screen Opening | 3 mm to 6 mm standard (custom available) |
| Temperature Range | Up to 200°C (depending on material) |
| Blowdown Connection | ½" to 2" NPT / BSP |
