Injection Skid Systems

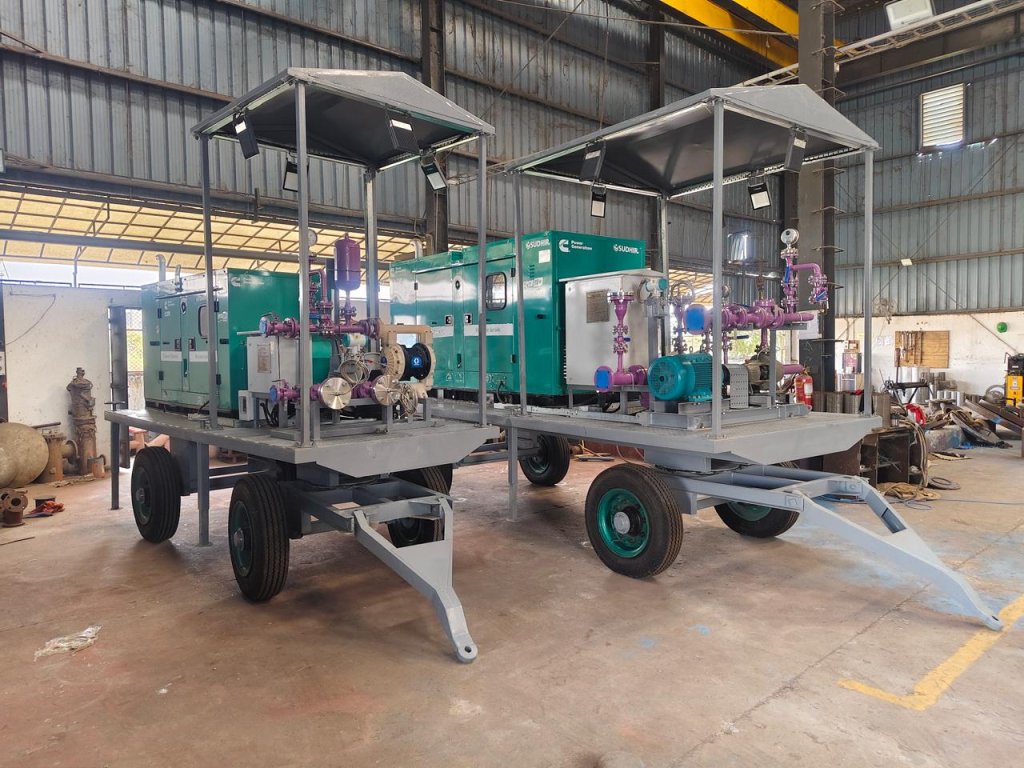

Injection Skid Systems Injection Skid Systems

Injection Skid Systems are fully integrated and engineered units designed for the accurate injection of chemicals, additives, or treatment fluids into process pipelines, vessels, or reactors. These skid-mounted systems combine pumps, instrumentation, valves, control panels, and piping into a compact, factory-assembled package that ensures precise dosing, reliability, and easy installation. Injection skids are widely used across industries where controlled chemical injection is critical for process efficiency, corrosion control, scaling prevention, or product quality improvement. Each skid is designed to deliver consistent injection flow under varying pressure and operating conditions. Our Injection Skid Systems are engineered for high accuracy, operational safety, and long service life, and can be customized according to process requirements, fluid properties, and site conditions.

Let’s Connect

Product Video

A typical Injection Skid System includes:



  • Chemical Injection Pumps (Diaphragm / Plunger / Metering Pumps)
  • Chemical Storage Tank or Day Tank
  • Suction & Discharge Piping
  • Pulsation Dampener
  • Pressure Relief Valve / Safety Valve
  • Calibration Column
  • Isolation Valves
  • Pressure Gauges / Pressure Transmitters
  • Flow Indicators / Flow Meters
  • Back Pressure Valve
  • Injection Quill / Injection Nozzle
  • Control Panel (PLC / VFD / Local Control)
  • Skid Base Frame with Anti-corrosion coating



Advantages of Injection Skid Systems



  • High precision chemical injection
  • Reduced installation time and cost
  • Compact and integrated system design
  • Reliable and continuous process operation
  • Safe handling of hazardous chemicals
  • Fully customizable according to process needs
  • Complete Skid Mounted Unit – Fully assembled, wired, and tested before delivery
  • Precise Chemical Injection – High accuracy metering pumps for controlled dosing
  • Compact & Modular Design – Saves installation space and simplifies maintenance
  • Robust Construction – Suitable for continuous industrial operation
  • Automated Control – PLC / HMI based operation available
  • Corrosion Resistant Materials – Suitable for aggressive chemicals
  • Integrated Safety Systems – Pressure relief valves, pulsation dampeners, and instrumentation
  • Easy Installation – Plug-and-play skid design reduces site work
  • Low Maintenance – Designed for easy access and servicing
  • Single Pump / Dual Pump / Duty-Standby Pump Configuration
  • PLC Based Automation System
  • Flow Controlled Injection System
  • Explosion Proof Electrical Components (ATEX / Hazardous Area)
  • SS304 / SS316 / Duplex Stainless Steel Construction
  • Chemical Storage Tanks with Level Sensors
  • Remote Monitoring & SCADA Integration
  • Dosing Flow Control with VFD
  • Drip Tray & Leak Detection System
  • Weatherproof / Outdoor Skid Enclosure
              Parameter                             Specification
Flow Rate Up to 5000 LPH (customizable)
Discharge Pressure Up to 400 Bar
Pump Type Diaphragm / Plunger / Metering Pump
Skid Frame Material Carbon Steel / SS304 / SS316
Piping Material SS316 / SS304 / PVC / PTFE / Alloy Steel
Control System Manual / PLC / HMI
Power Supply 230V / 415V / 50Hz
Operating Temperature Up to 200°C (depending on design)
Mounting Type Skid Mounted
Safety Features PRV, Interlocks, Pressure Monitoring

Oil & Gas Industry



  • Corrosion inhibitor injection
  • Methanol injection
  • Scale inhibitor injection
  • Biocide injection



Chemical & Petrochemical Plants



  • Catalyst dosing
  • Chemical additives injection
  • Process treatment chemicals



Water & Wastewater Treatment



  • Chlorination systems
  • Coagulant dosing
  • pH correction chemicals



Power Plants



  • Boiler chemical dosing
  • Cooling tower treatment chemicals



Food & Pharmaceutical Industry



  • Process chemical dosing
  • Additive injection systems
